Brand BKHD
Model 1U-PVC-B75-6L-2S
Chipset B75
Network port 6*1GE Intel 82583
2*10G SFP Intel 82599
Storage 1*mSATA/1*SATA
Expandable 1*mPCIe for WiFi/Bluetooth
Video output 1*VGA/1*HDMI (Opt)
Power Adapter ATX 100~240V IN 12V Out

Related accessories (click to download)

Product manual

Product specification

BIOS file




Product features:


BKHD 1U PVC B75 6L 2S is a rack-mountable network appliance supporting LGA1155 pin Celeron, Core and Xeon processors (optional). It is equipped with dual-channel DDR3L memory and supports a maximum memory capacity of 16GB.

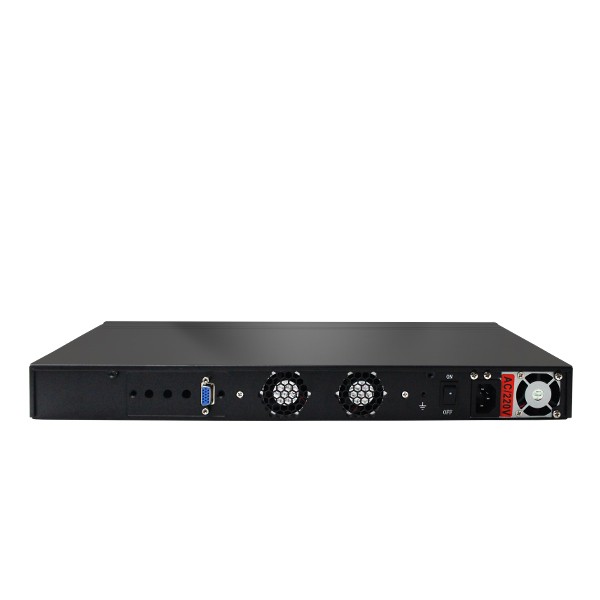

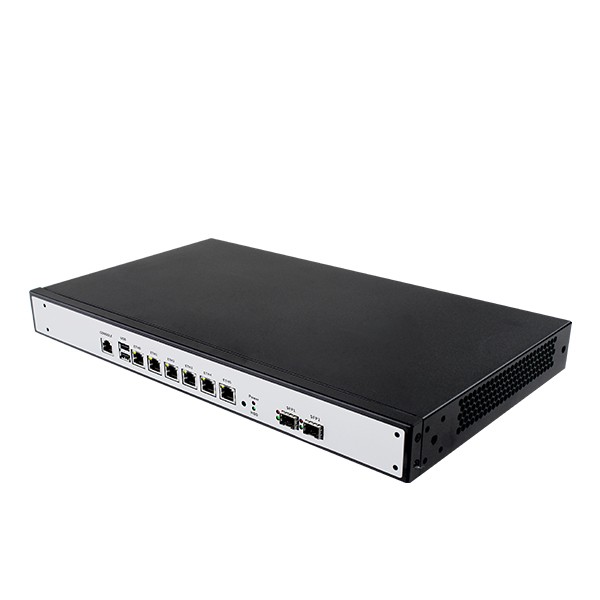

The device features a rack-mountable chassis design with a standard 19-inch 1U size, making it easy to install and manage in the cabinet. At the same time, it has the ability to adapt to a wide temperature environment and operate stably in the temperature range of -20 degrees Celsius to 60 degrees Celsius, ensuring the reliability and stability of the equipment.

X86 architecture design and excellent compatibility can widely support various operating systems and software. Whether you use various routing systems such as OPNsense, Pfsense, MikrotikOS, VyOS, or Windows desktop and server series, they can easily meet your working environment requirements.

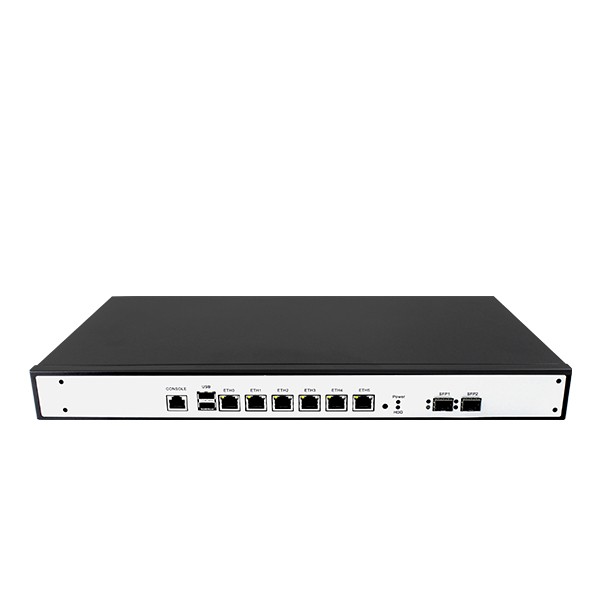

Equipped with 6x1 Gigabit Ethernet ports and 2x10 Gigabit SFP+ optical ports, it uses Intel adaptive network card technology to provide excellent support for high-speed network data transmission. It can meet the needs of various scenarios such as high-speed home networking and enterprise-level networking, easily connect multiple devices, and achieve fast and stable data transmission.

Reliable security, supporting advanced security functions such as firewall and VPN. Protect your network from malicious attacks and unauthorized access. It's also highly scalable, supporting additional expansion slots and connections so you can upgrade and expand as needed.


Powerful routing and switching capabilities support dynamic routing protocols and multiple VLAN settings for efficient data transmission and traffic management. It also provides easy management and monitoring functions. Through an intuitive and easy-to-use interface, you can easily configure and manage the device, and monitor the status and performance of the network in real time.

Energy-saving and environmentally friendly, it adopts low-power design and complies with environmental protection standards. It can not only save energy and reduce operating costs, but also help reduce the impact on the environment.
